Motion Sensor Light Strip 36 Channel LED Controller Stair Light Indoor Motion Night light 12V Flexible LED Strip Tape Lights

Motion Sensor Light Strip 36 Channel LED Controller Stair Light Indoor Motion Night light 12V Flexible LED Strip Tape Lights

€96,99
€144,99 €96,99
Promotion Épuisé
Taxes incluses.
Ships From
Emitting Color
  • Qualité premium
  • Livraison sécurisée
  • Paiement sécurisé


LED motion sensor dimming lightStair streamline lightunder cabinet night light flexible LED Strip 12V Tape power supply


Important note:The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.

Added the light sensor (the controller working at night only)：the light sensor head must be not covered or buried inside the box,otherwise there will be no photosensitive control lighting function and the controller will be work both day and night.If you want to test this controller or all lights,please remove the light sensor head If not, the controller and lights will not work in daylight.

Product packaging LED Controller set include:

10m extend cable ：2 roll 5m Sensor extension cable

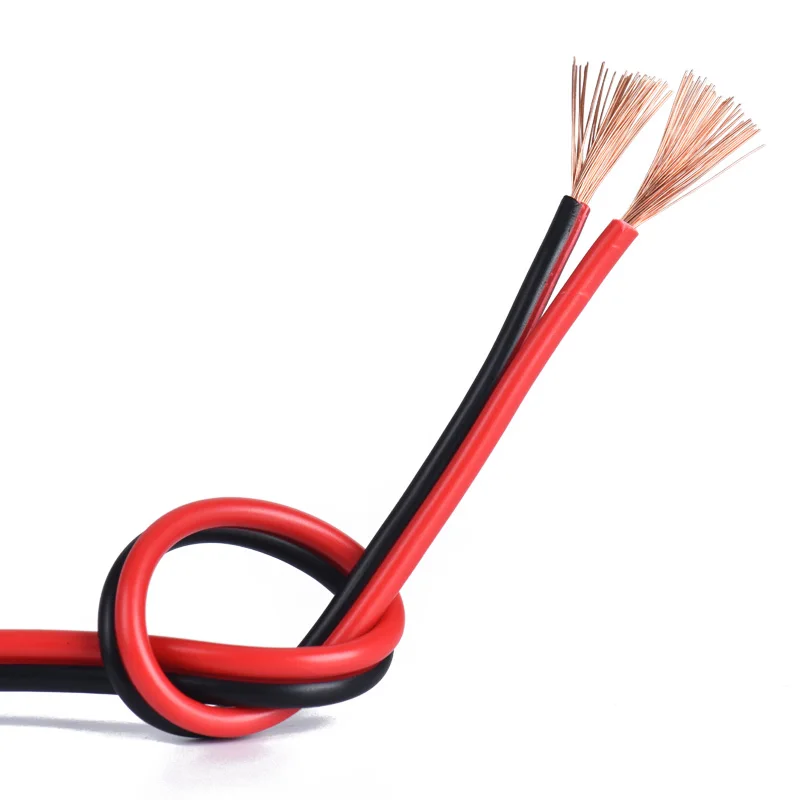

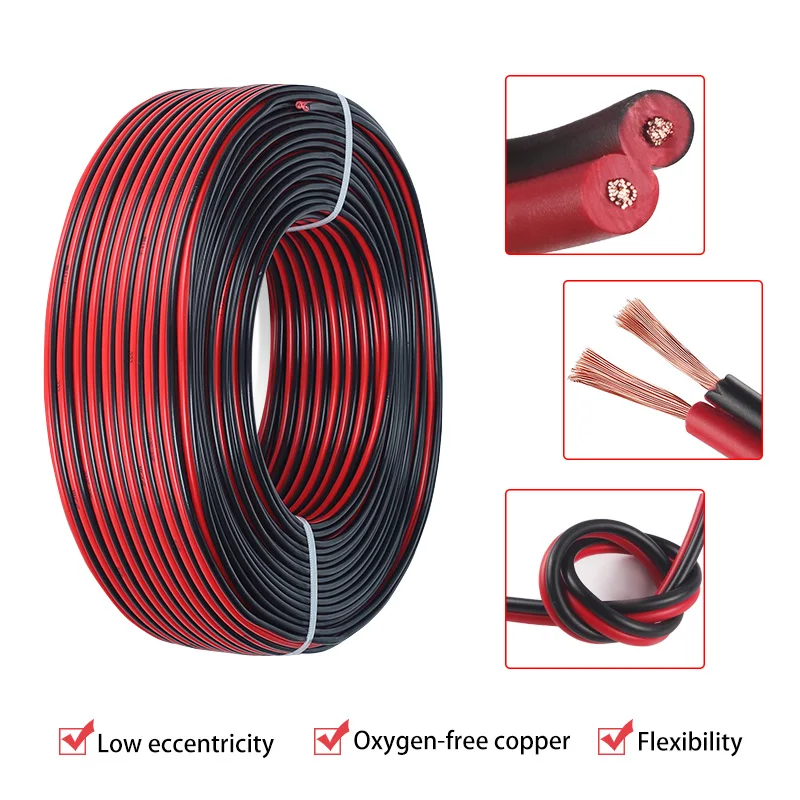

50m wire：1 roll 50m 2pin 20AWG Wire

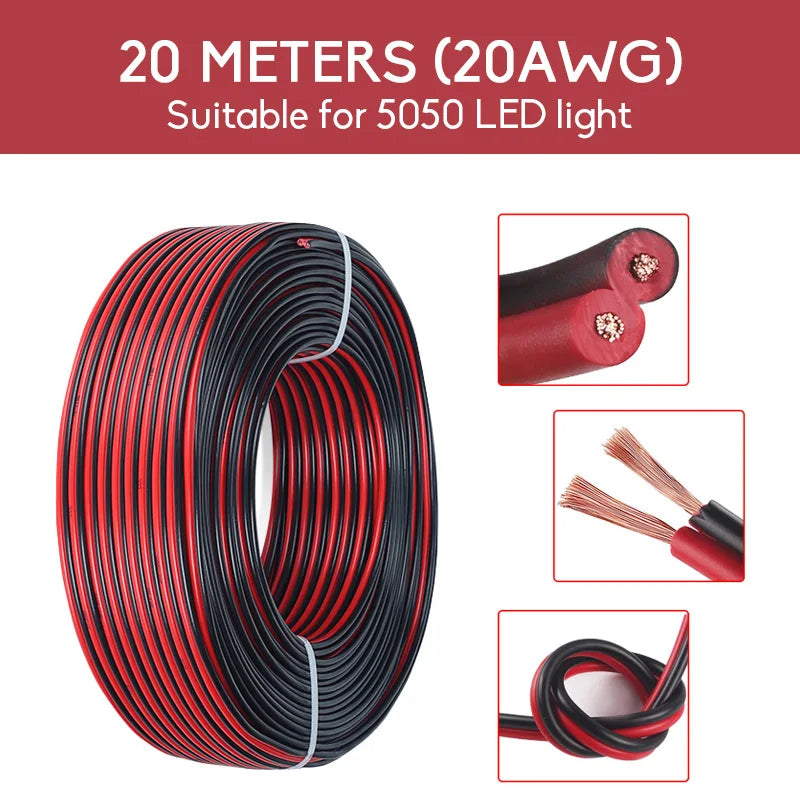

20m wire：1 roll 20m 2pin 20AWG Wire

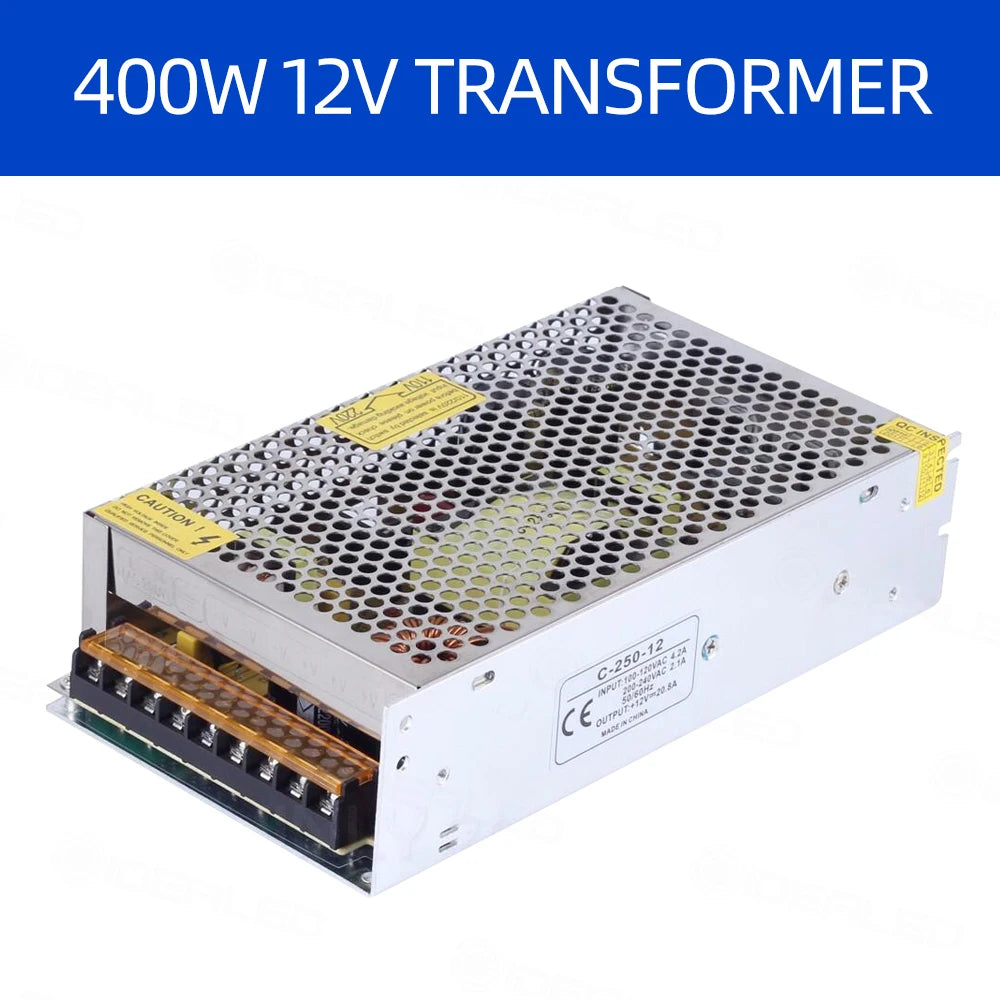

400W Transformer：1pcs 12V 400W Power Transformer

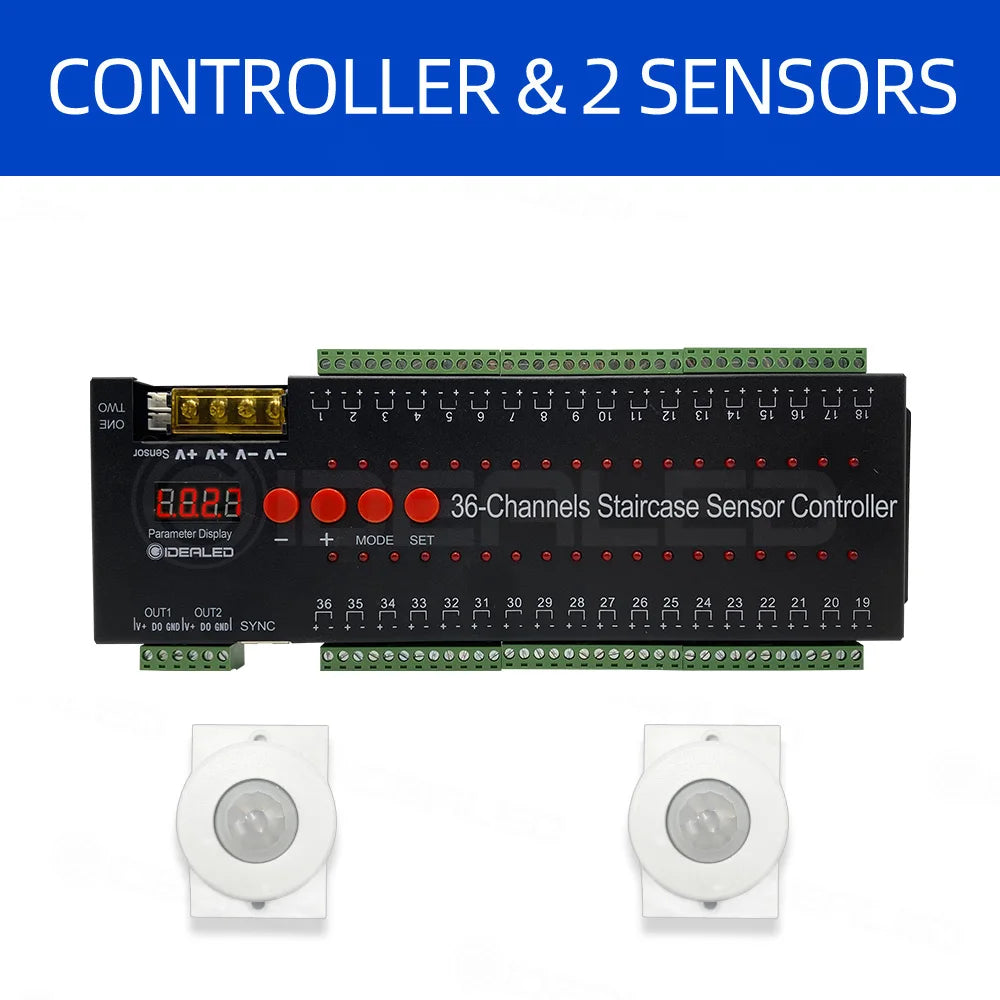

Only Controller：1pcs 36CH Stair Controller + 2pcs Sensor


5m addressable LED：1 roll （Warm white or Cold white ）3pin Not waterproof Addressable LED Light Strip


5m RGB addressable：1 roll RGB*IC 3pin Not waterproof Addressable LED Light Strip


5m cold white light ：1 roll 5m SMD 5050 2pin Not Waterproof Cold White Light Strip

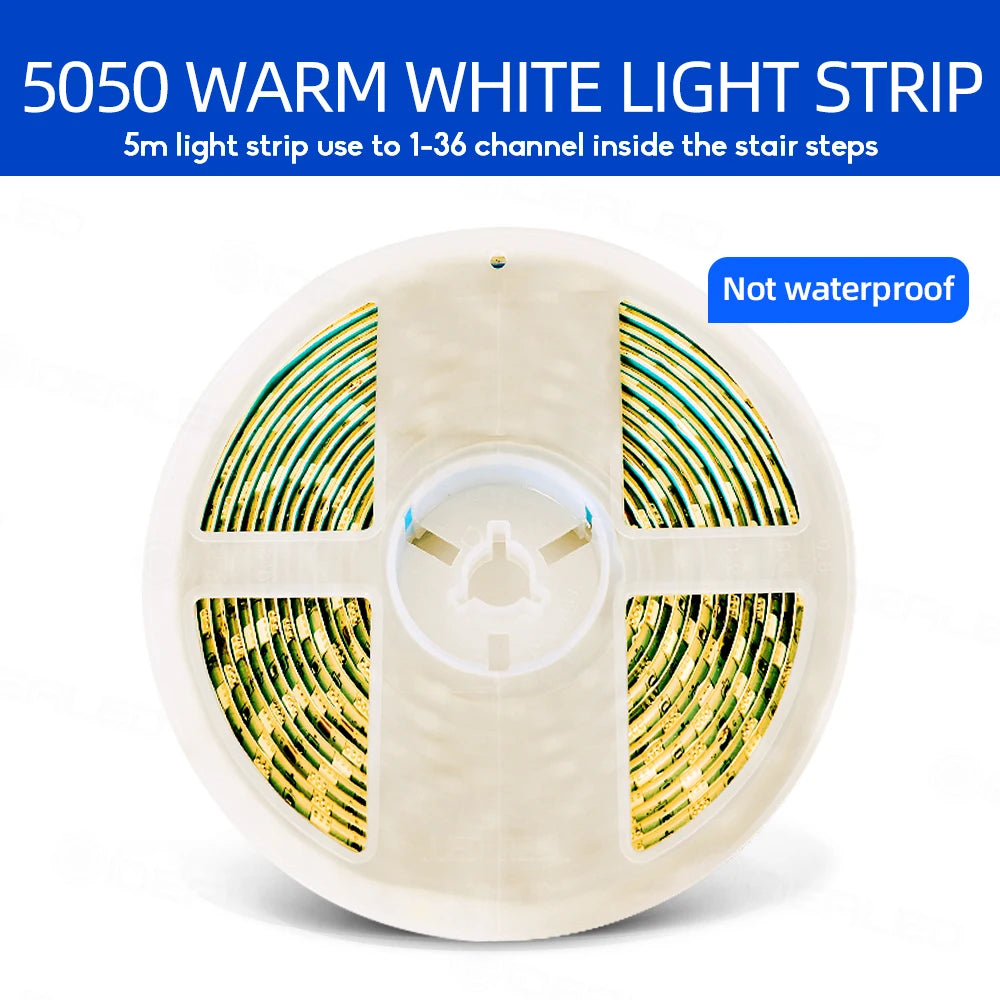

5m warm white light ：1 roll 5m SMD 5050 2pin Not Waterproof Warm White Light Strip


10m extend cable： 2 roll 5 meters Sensor extension cable （When purchasing the sensor extension cable, you need to buy our controller at the same time to use it. If you purchase the sensor extension cable separately, we will not ship it.）


Note: 1-You need buy the Power supply & white strip lights and addressable strip lights.

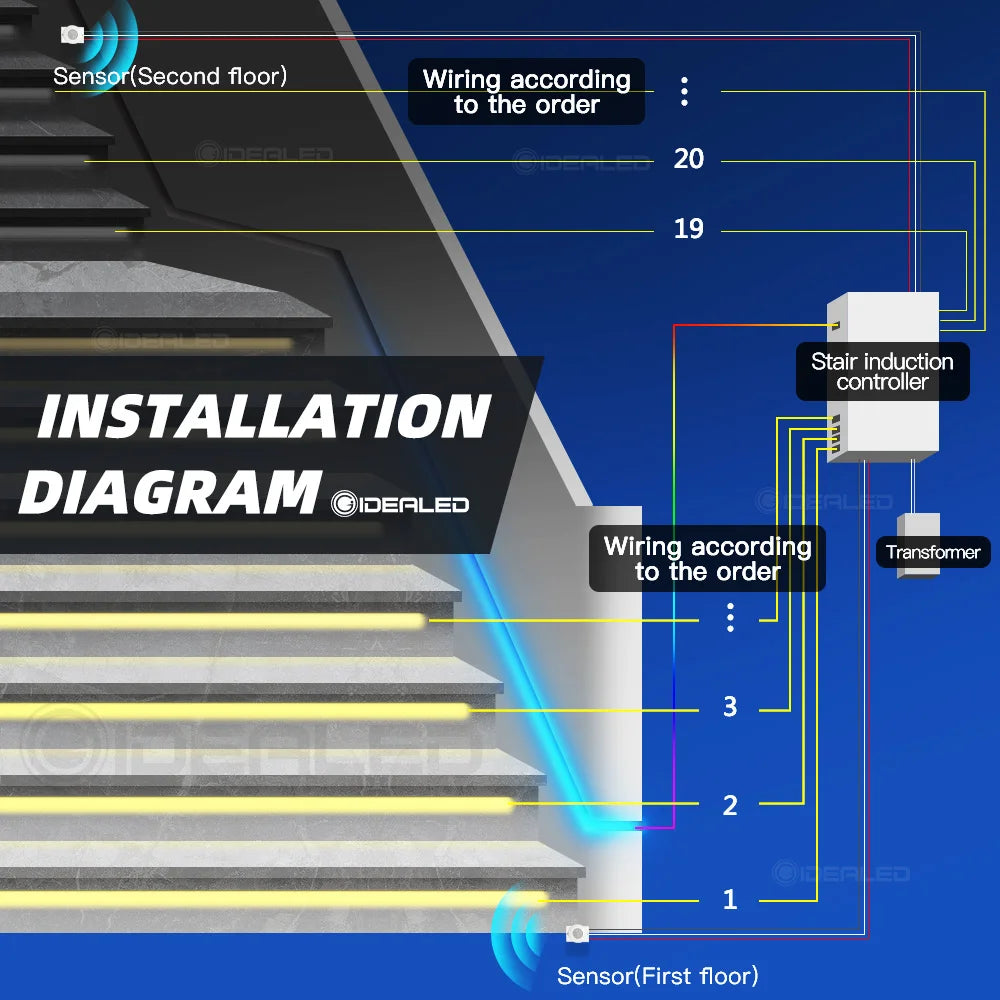

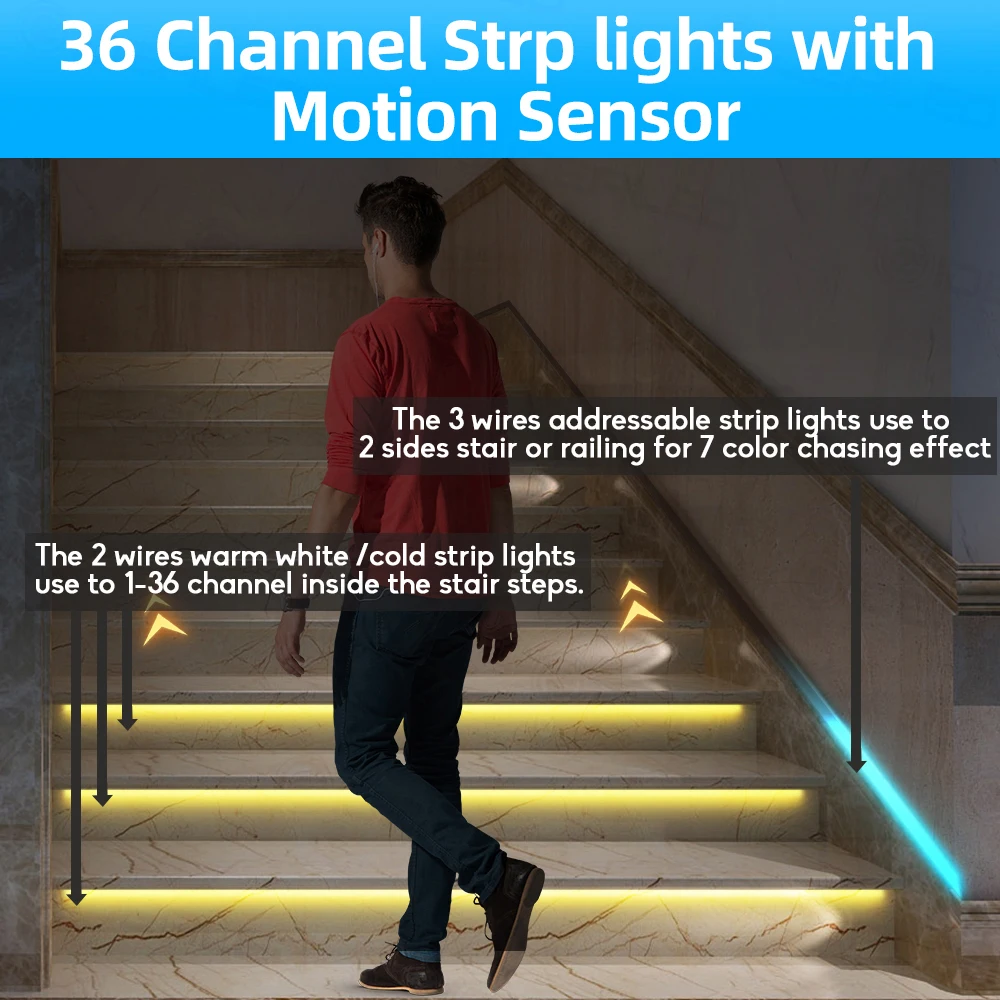

          2-The 2 wires warm white /cold strip lights use to 1-36 channel inside the stair steps.

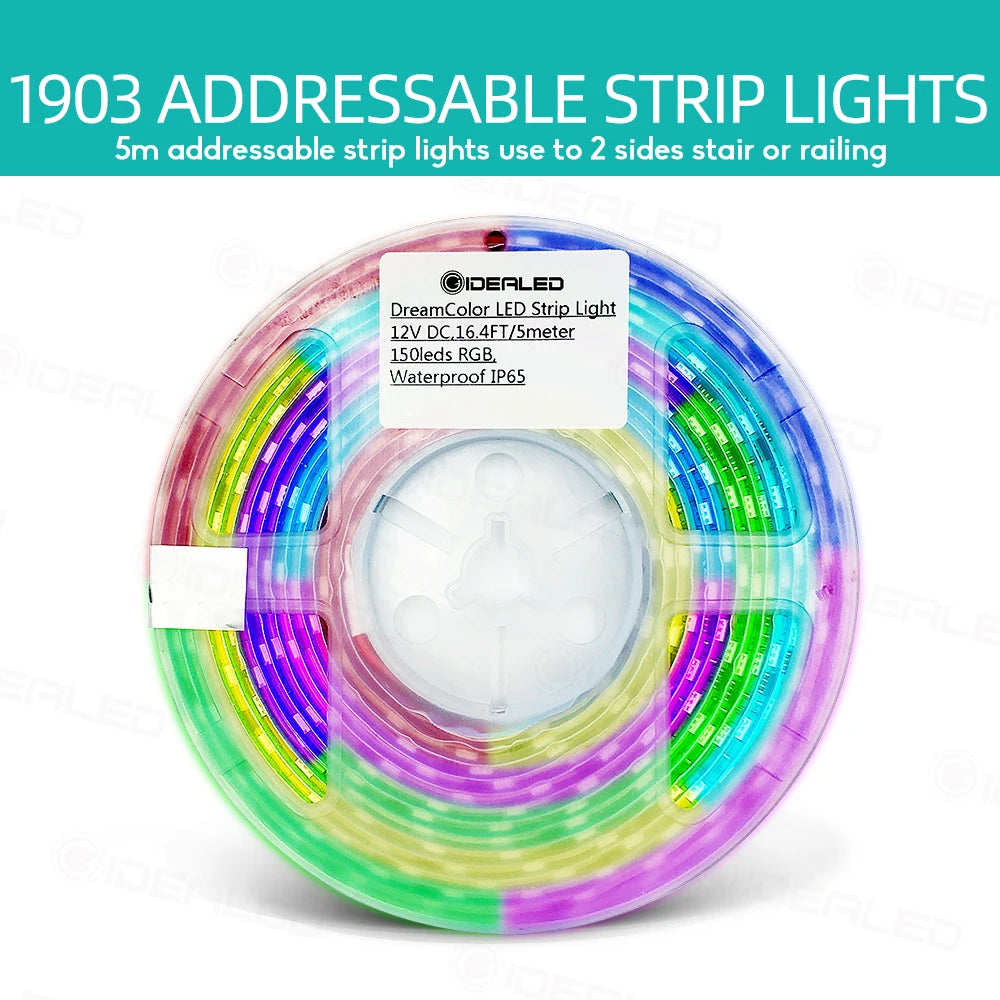

 3-The Multi colored light is 3 wires addressable RGB strip lights 150 LEDs/5 meter,The 3 wires addressable strip lights use to 2 sides stair or railing for 7 color chasing effect

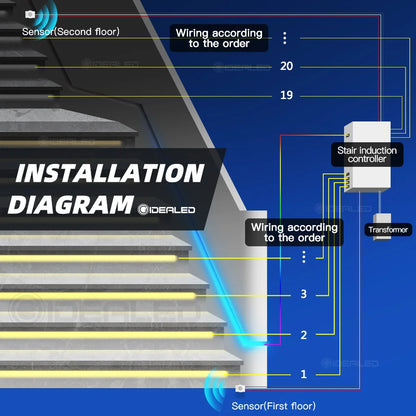

 4-There are detailed installation instructions below the details page. Currently this product does not come with instructions. If you have any questions, please contact online customer service.
 5-All light strips in this link are 5 meters per roll, please purchase according to your needs.
 6-We sell power extension cords, but we do not sell connection cords for light strips. Please purchase them separately.
Product description:

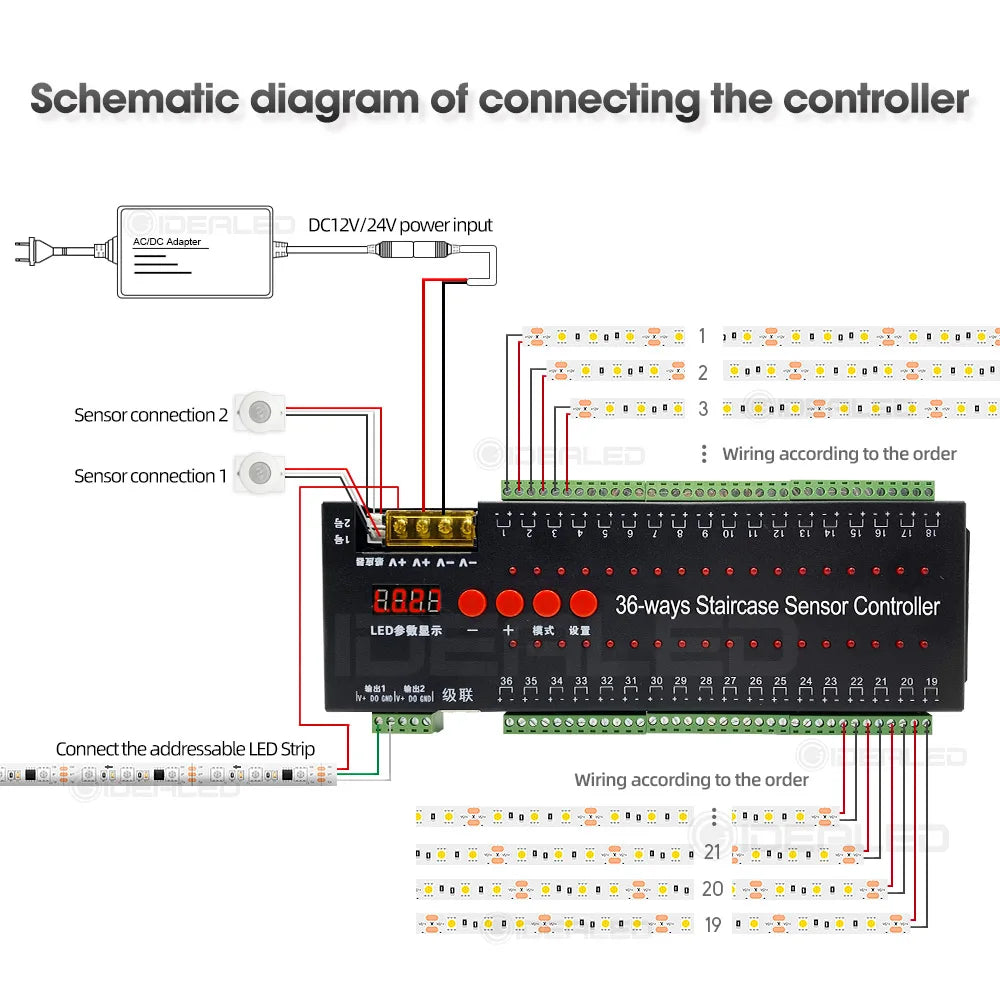

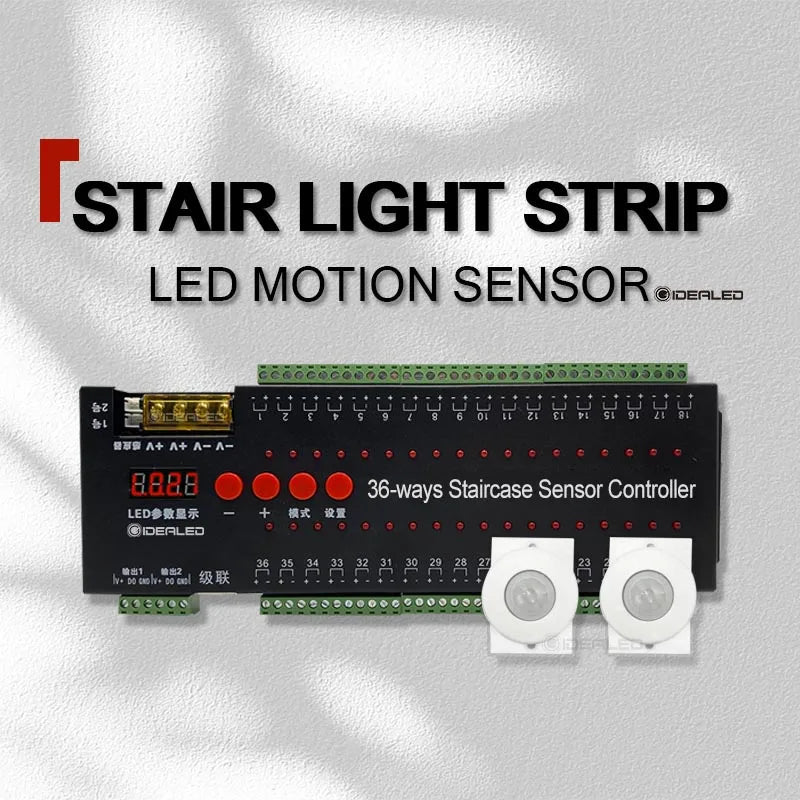

36-channel multi-function LED controller with two sensors, which can drive 2 kinds of LED lights, one is a dreamcolor light that supports a universal SPI single-wire chip, such as the universal 1903, 1909, 1912, TM1812, WS2811, 16703, WS2812B, 8205, 8206 and so on full-color pixel LED lights,  the control system at the lower left corner of DO1, GND, DO2, GND with 2 parallel output terminals, can be connected to the left and right sides of the stairs lights. The output terminals on both sides of the controller are for the single-color light strips used on the 36-way stair tread, the number of light strips can be adjusted. The function setting of the induction controller is selected by the buttons. The setting is displayed through the 4-digit digital tubes on the left.




♦♦How to set up the program?

The display panel and key function list:

In the initial state of power on,the digital tube displays:3--L, Method of adjusting parameters by keys: In the initial 3--L display state,press the button "SET" into the setting parameter state,adjust the state value by pressing the two buttons of "SP- SP+", then press the button "SET" again getting into the next menu adjustment state; The displayed state lists are as follows:

L***(010-800) Set The Pixel number of segment length of addressable light strips on both sides of stairs, the maximum number is 800,press two buttons of "SP- 、 SP+" to adjust,after finishing, continue to press "SET" getting into the next step;(Example L050,L100,L200)

Note: The addressable light strip in our shop （5 meters = L050, 10 meters = L100）

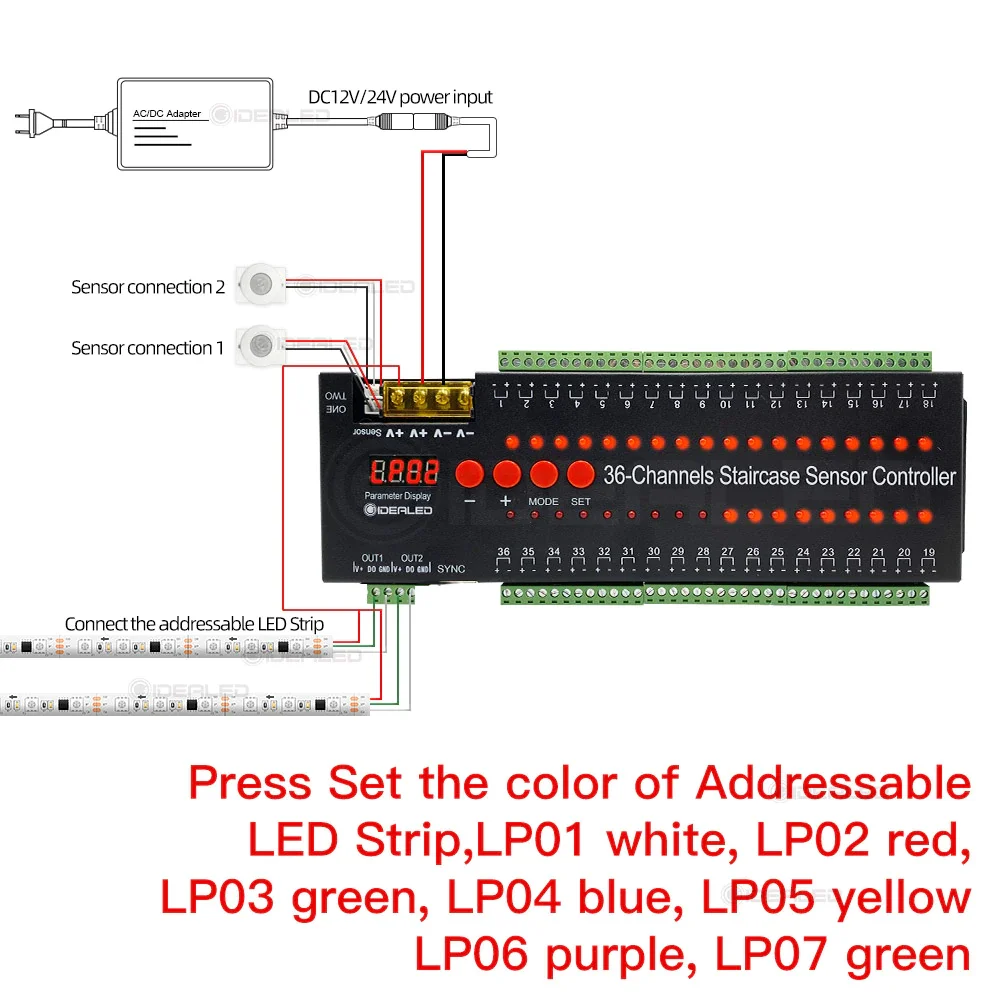

LP**（01--07)is for the side’s addressable light strip color is also adjusted by “SP- and SP+”, 01 white 02 red 03 green 04 blue 05 yellow 06 purple 07 green（total 7 color)


LH**(01-99) is stair’s 2 side flashing speed of dreamcolor (addressable) light strip LC**(01-05) Set the brightness of 2 side dreamcolor (addressable) light strip LE**(01-99) Set the delay time of addressable light strip when people walk through and stay on Recommended setting to LE01---LE05

F*** (010-036) Set the Number of stair step white light strips,max 36 stairs (F036)


FP** Set the model of stair step lights (6 model)


FH** Set the speed of the 1--36 stairs stair strp light,FH01 is fastest,and adjusted by “+”,the speed will slower when the number is increases


FC** Set the brightness of 1--36 stairs stair strp light


FE** (01-99) seconds,adjusts the delay time when people walk through and stay on.when the delay time is up, the side panel light strip and stair light strip are extinguished gradually. Recommended setting to PE01---PE05

After finishing the adjustment of the parameters, press the "SET" button one last time, the parameter display will return to the 3--L display state,and it will automatically save the set parameters to the control system, the next time it will work according to the newly set parameters

Added the light sensor (the controller working at night only) Important: the light sensor head must be not covered or buried inside the box,otherwise there will be no photosensitive control lighting function and the controller will be work both day and night.
