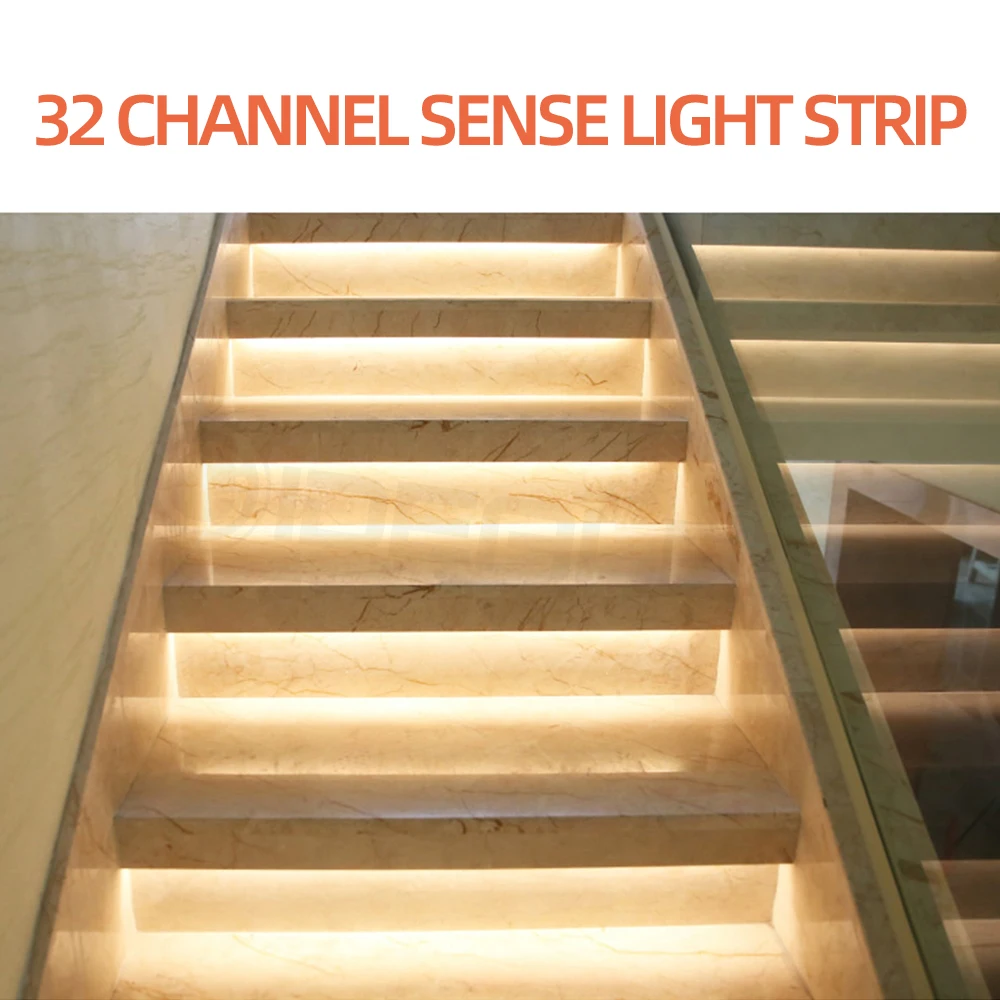

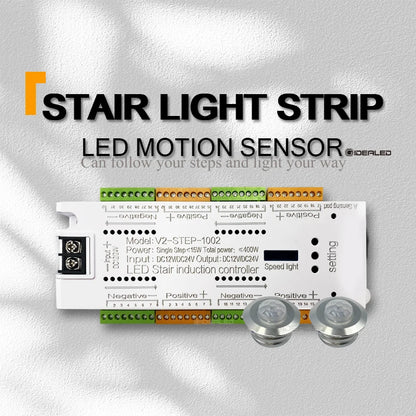

Stair Light Strip LED Motion Sensor 32 Channel Controller Indoor Motion Night light 12V/24V Flexible Strip for Stair Lights

32 Channel LED Controller with PIR Motion Sensor for Control Each Stair Light,Indoor Motion Night light DC12V & 24V Flexible LED Strip for The Stair

Product description:

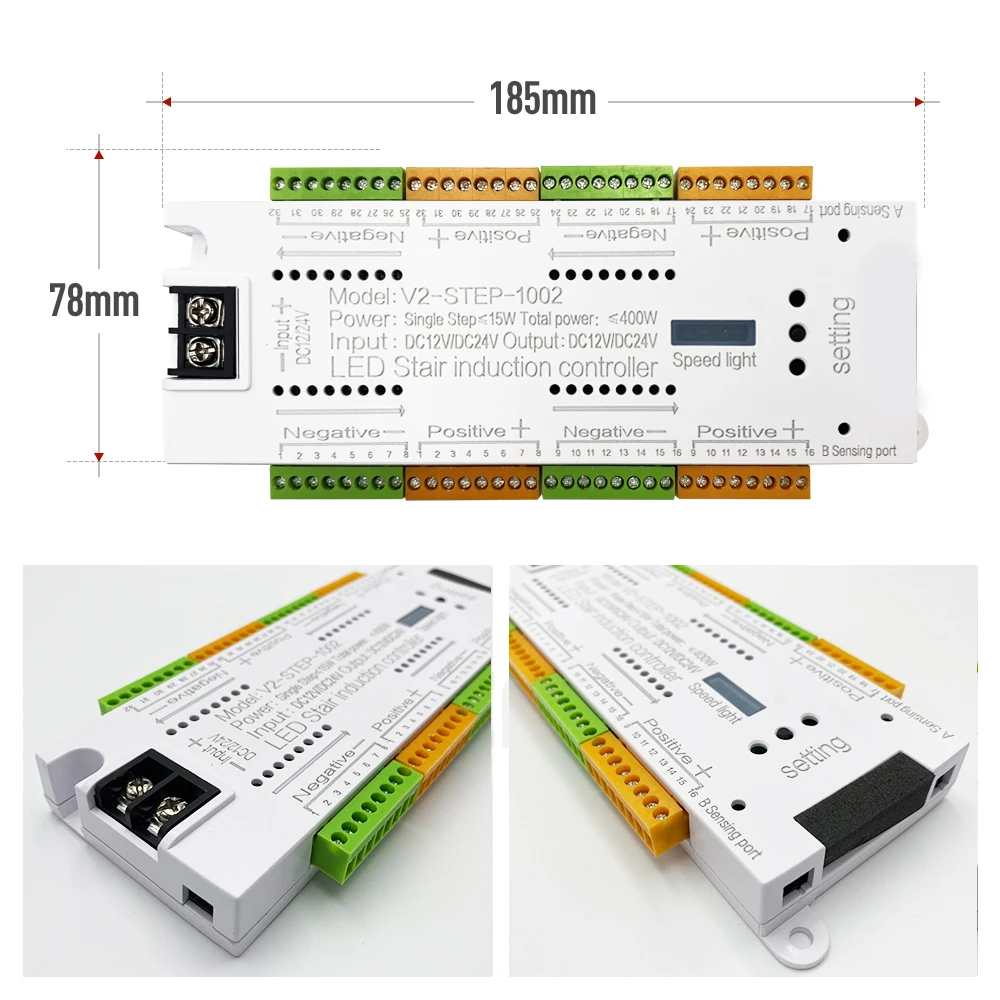

Product name: 32-channel stair sensor

Voltage: DC12V/DC24V

Power: 350w

Channel: 32 (set to 1-32 step)

Sensors: 2 Pir Sensor

Product function description:

1. Press the key quickly to adjust the speed of the light strip. There are four gears (60 seconds, 45 seconds, 30 seconds, 15 seconds)

2. Press and hold the key for 5-6 seconds to enter the step setting mode. *Long press the switch once to set the first step stairs, *Short press the switch a second time to set the second step stairs, *Short press the third time to set the third step stairs, and so on.

3. After the operation is completed, press and hold again for 5-6 seconds to automatically save the corresponding settings.

NOTE:

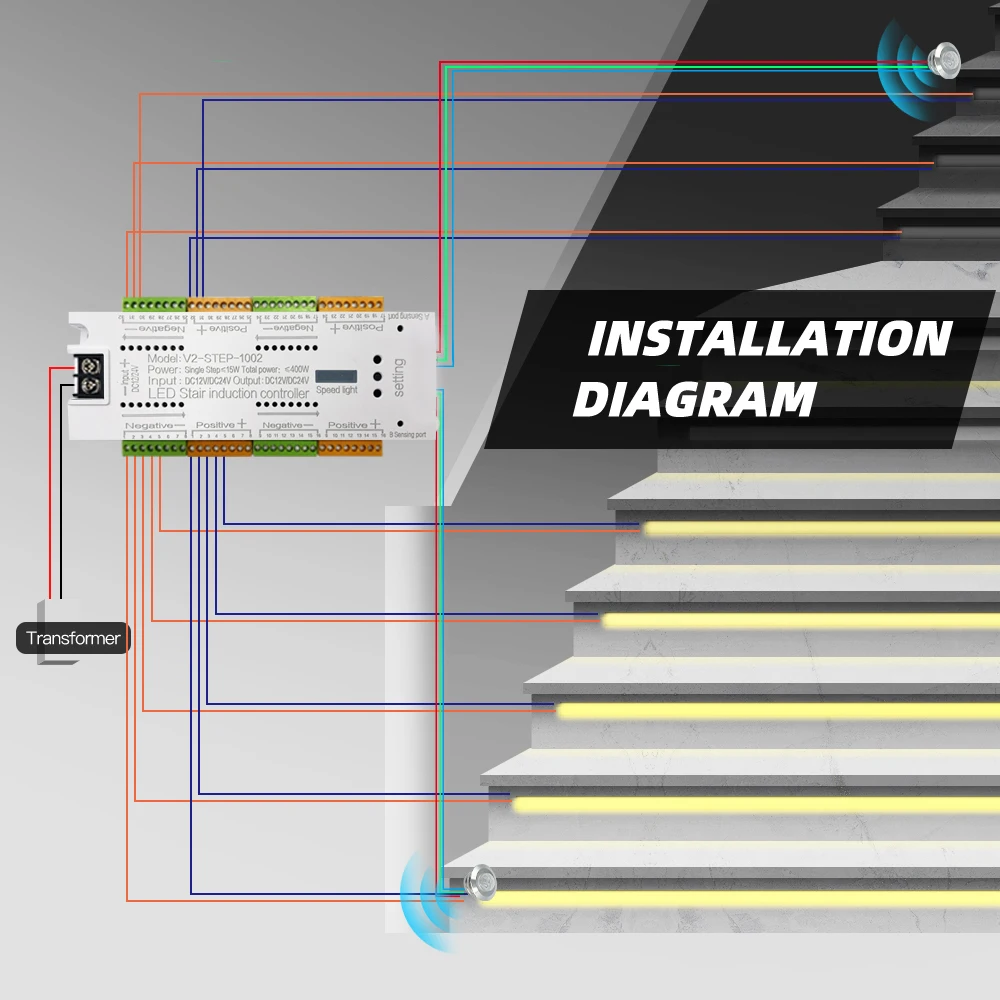

1-A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

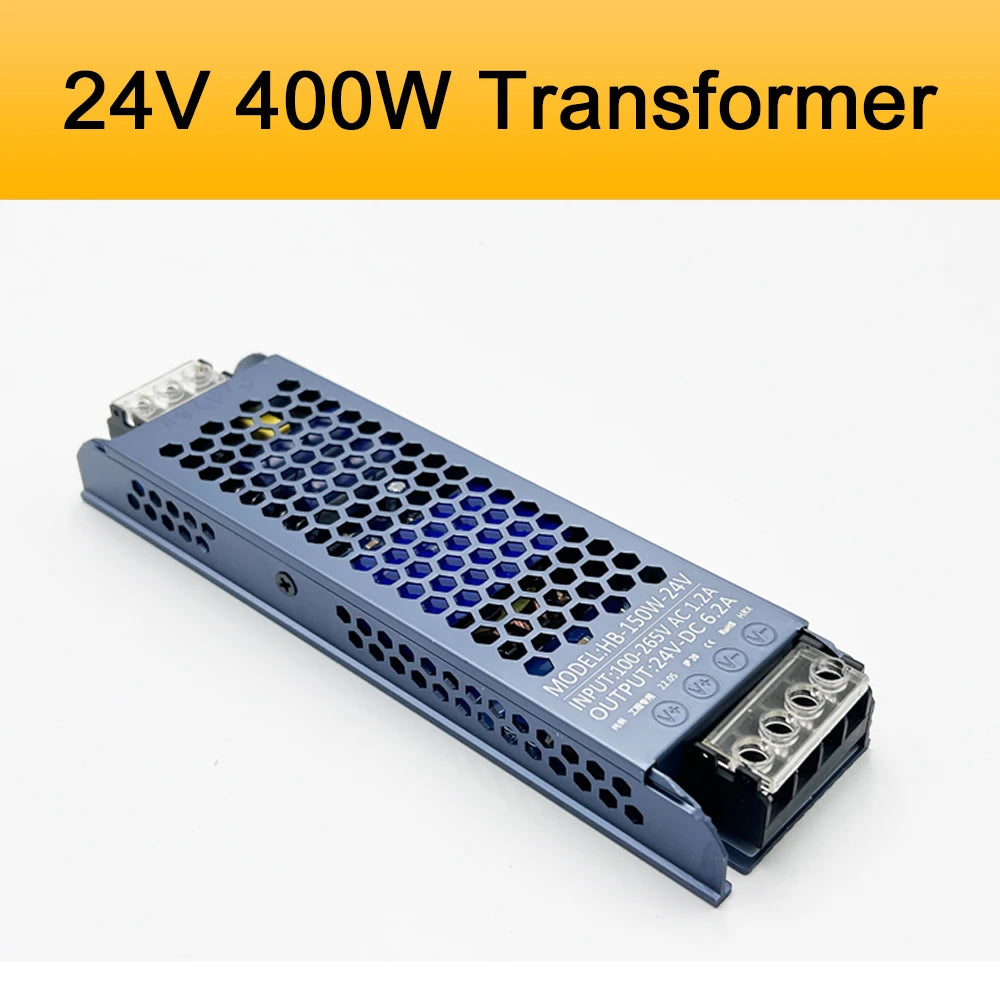

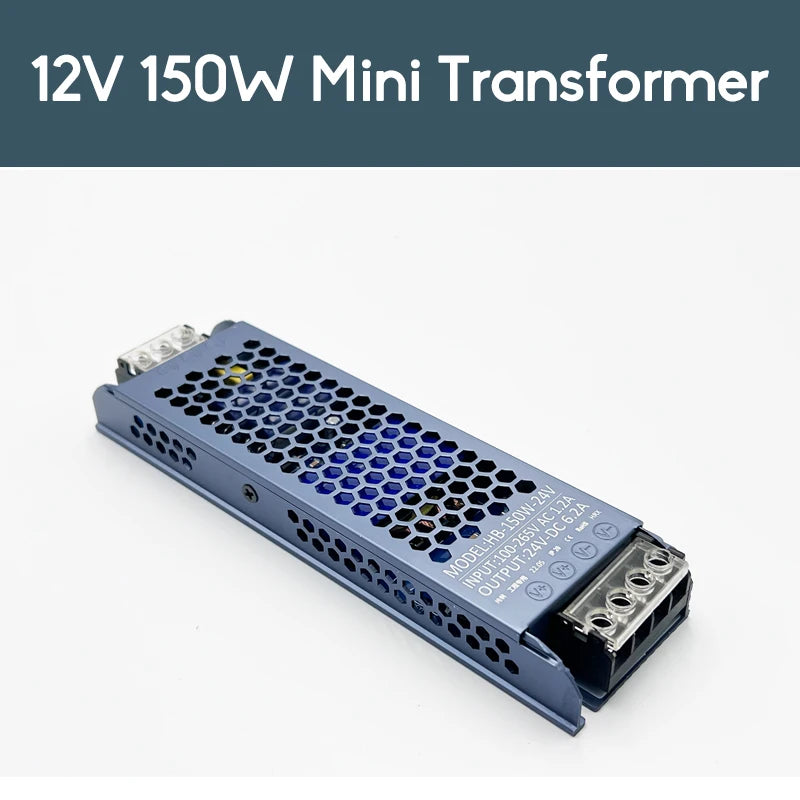

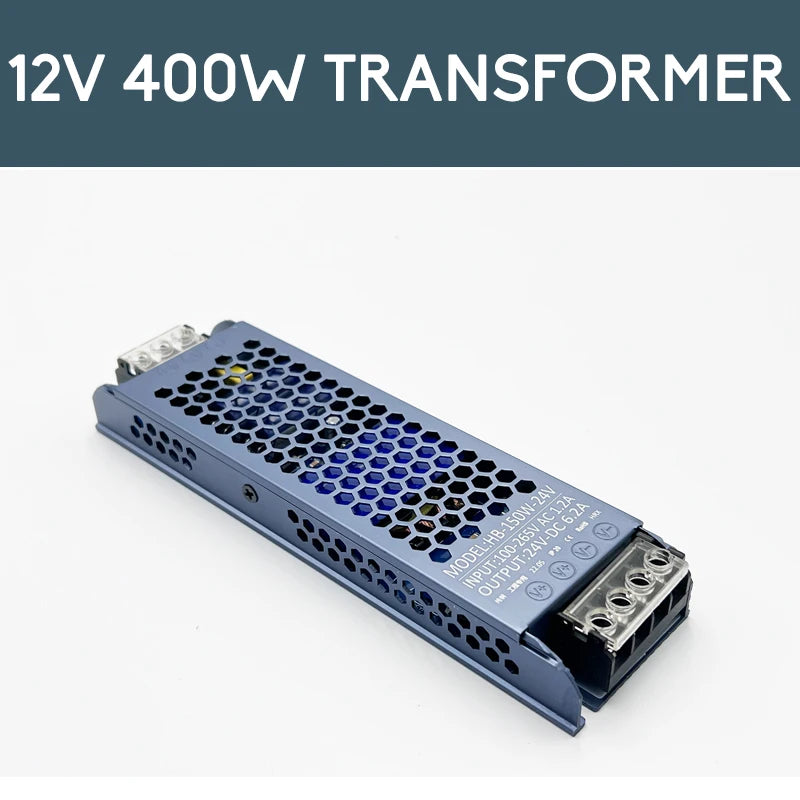

2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.

Important note:

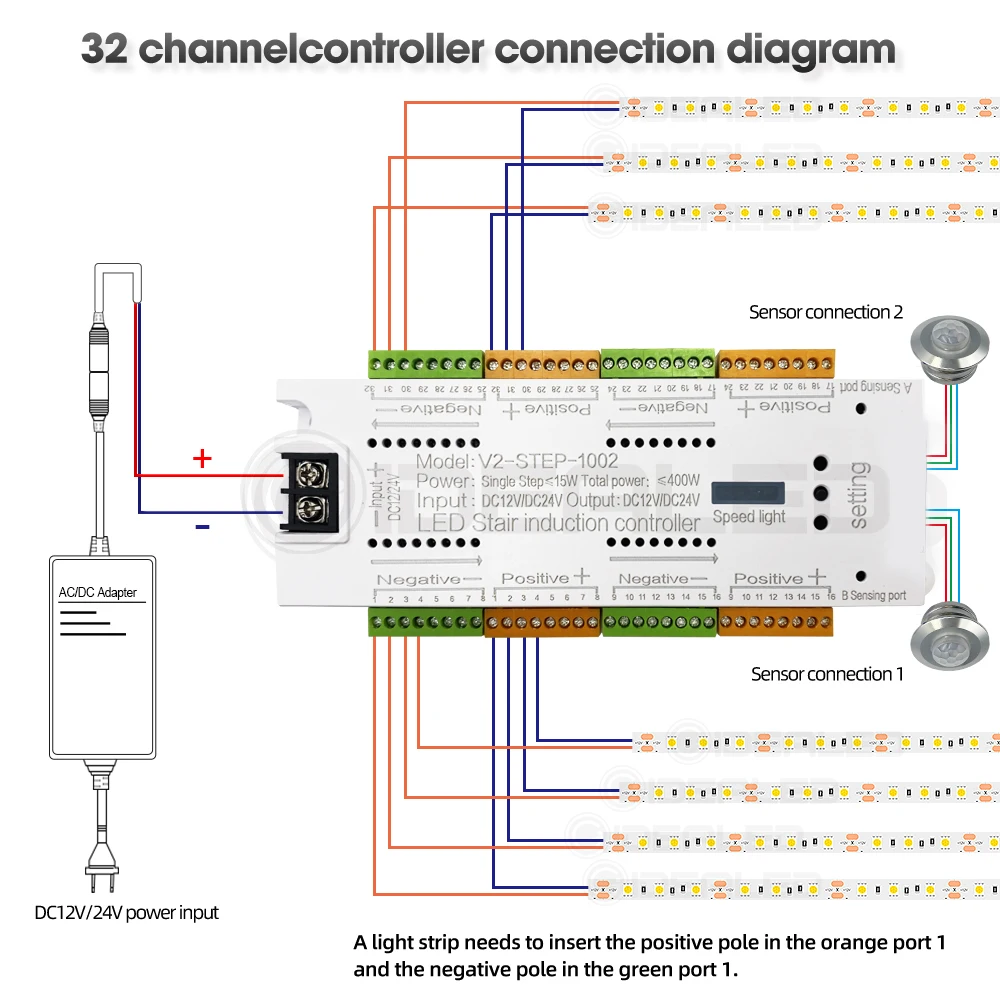

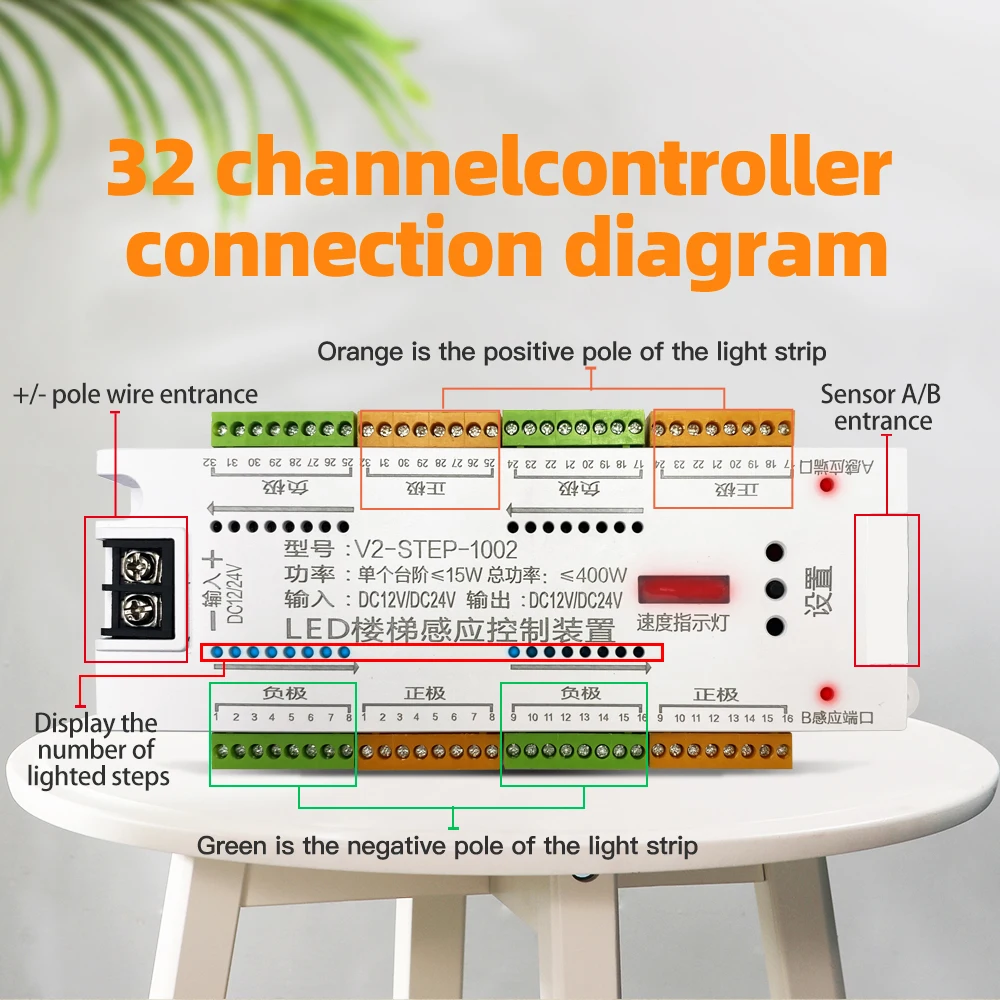

• The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.

• Each channel output Max 18W, Do not exceed the MAX power 18W, If not,the controller will damage.

• The controller cannot be installed with connected products while the power is on, which will cause the controller to burn out.

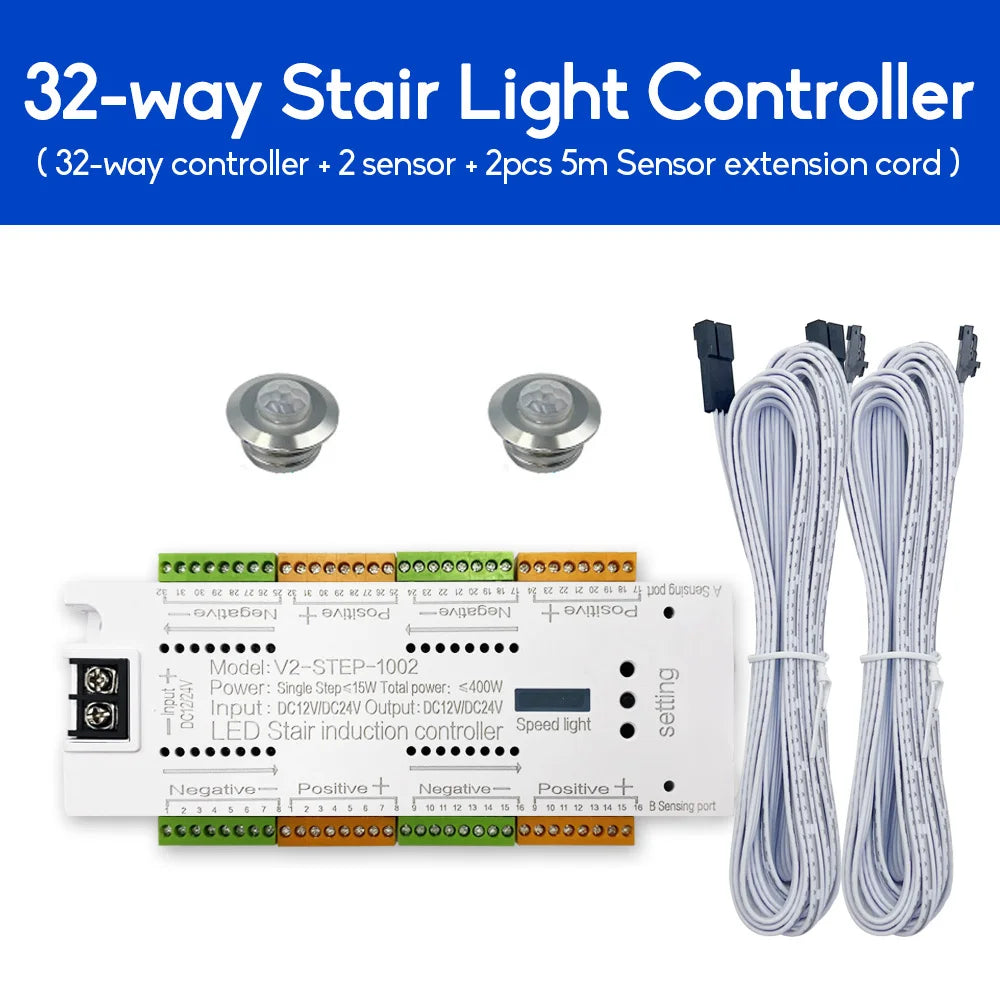

Product package:
The product SKU diagram shows all the products you will get after your purchase.
